Could not authenticate to SMB share with correct creds [solved] : freenas

Could not authenticate to SMB share with correct creds [solved]

I solved this issue but wanted to share the solution.

I had set SMB permissions correctly according to this forum post and this video, but I was never able to access my SMB share.

I was able to see the server and the list of shares, but no matter what I could not actually open a share. No matter what user or group I used, each login from W10 would fail with ‘Access is Denied’ or ‘Incorrect user name or password’ or ‘Check with system admin to verify permissions’.

The first thing I wish I had known off the bat was that samba activity is logged in FreeNAS at /var/log/samba4/log.smbd. Tailing that log, it was obvious there were authentication issues. On each login attempt, I saw:

[2018/04/15 02:10:51.243374,  2] ../source3/param/loadparm.c:2787(lp_do_section)
  Processing section "[$fnstorage]"
[2018/04/15 02:10:51.245286,  2] ../libcli/auth/ntlm_check.c:430(ntlm_password_check)
  ntlm_password_check: NTLMv1 passwords NOT PERMITTED for user msUser
[2018/04/15 02:10:51.245752,  2] ../source3/auth/auth.c:332(auth_check_ntlm_password)
  check_ntlm_password:  Authentication for user [msUser] -> [msUser] FAILED with error NT_STATUS_WRONG_PASSWORD, authoritative=1
[2018/04/15 02:10:51.245837,  2] ../auth/auth_log.c:760(log_authentication_event_human_readable)
  Auth: [SMB2,(null)] user [MicrosoftAccount]\[msUser] at [Sun, 15 Apr 2018 02:10:51.245799 PDT] with [NTLMv1] status [NT_STATUS_WRONG_PASSWORD] workstation [win10-PC] remote host [remoteAddress] mapped to [MicrosoftAccount]\[msUser]. local host [hostAddress]
[2018/04/15 02:10:51.245934,  2] ../auth/gensec/spnego.c:605(gensec_spnego_server_negTokenTarg)
  SPNEGO login failed: NT_STATUS_WRONG_PASSWORD

Now at first glance, what jumps out is NT_STATUS_WRONG_PASSWORD, you might think you’re just typing your password wrong. But that’s not what’s really going on– the real culprit is

ntlm_password_check: NTLMv1 passwords NOT PERMITTED for user msUser

You may remember that NTLMv2 is the standard for SMB security, and NTLMv1 authentication is disabled by default in FreeNAS SMB shares.

I figured my PC was using NTLMv1 for some reason. A little research led me to this GPO in Group Policy:

 Computer Configuration\Windows Settings\Security Settings\Local Policies\Security Options\LAN Manager authentication level\

Set this to Send NTLMv2 Only instead of whatever else it is. Mine was set to Use NTLMv2 if negotiated. See Microsoft’s docs for the caveats here.

I’m not sure if the value my PC was using is default, and I’m not sure if FreeNAS should actually negotiate NTLMv2, but this resolved my issue with no impact to other SMB shares on my network.

microsoft, sysadmin, Windows

How to detect, enable and disable SMBv1, SMBv2, and SMBv3 in Windows | Microsoft Docs

How to detect, enable and disable SMBv1, SMBv2, and SMBv3 in Windows

  • Article
  • 10 minutes to read

Applies to: Windows Server 2022, Windows 10, Windows 8.1, Windows 8, Windows Server 2019, Windows Server 2016, Windows Server 2012 R2, Windows Server 2012

This article describes how to enable and disable Server Message Block (SMB) version 1 (SMBv1), SMB version 2 (SMBv2), and SMB version 3 (SMBv3) on the SMB client and server components.

While disabling or removing SMBv1 might cause some compatibility issues with old computers or software, SMBv1 has significant security vulnerabilities and we strongly encourage you not to use it.

Disabling SMBv2 or SMBv3 for troubleshooting

We recommend keeping SMBv2 and SMBv3 enabled, but you might find it useful to disable one temporarily for troubleshooting. For more information, see How to detect status, enable, and disable SMB protocols on the SMB Server.

In Windows 10, Windows 8.1, Windows Server 2019, Windows Server 2016, Windows Server 2012 R2, and Windows Server 2012, disabling SMBv3 deactivates the following functionality:

  • Transparent Failover – clients reconnect without interruption to cluster nodes during maintenance or failover
  • Scale Out – concurrent access to shared data on all file cluster nodes
  • Multichannel – aggregation of network bandwidth and fault tolerance if multiple paths are available between client and server
  • SMB Direct – adds RDMA networking support for high performance, with low latency and low CPU use
  • Encryption – Provides end-to-end encryption and protects from eavesdropping on untrustworthy networks
  • Directory Leasing – Improves application response times in branch offices through caching
  • Performance Optimizations – optimizations for small random read/write I/O

In Windows 7 and Windows Server 2008 R2, disabling SMBv2 deactivates the following functionality:

  • Request compounding – allows for sending multiple SMBv2 requests as a single network request
  • Larger reads and writes – better use of faster networks
  • Caching of folder and file properties – clients keep local copies of folders and files
  • Durable handles – allow for connection to transparently reconnect to the server if there’s a temporary disconnection
  • Improved message signing – HMAC SHA-256 replaces MD5 as hashing algorithm
  • Improved scalability for file sharing – number of users, shares, and open files per server greatly increased
  • Support for symbolic links
  • Client oplock leasing model – limits the data transferred between the client and server, improving performance on high-latency networks and increasing SMB server scalability
  • Large MTU support – for full use of 10 Gigabit Ethernet (GbE)
  • Improved energy efficiency – clients that have open files to a server can sleep

The SMBv2 protocol was introduced in Windows Vista and Windows Server 2008, while the SMBv3 protocol was introduced in Windows 8 and Windows Server 2012. For more information about SMBv2 and SMBv3 capabilities, see the following articles:

How to remove SMBv1

Here’s how to remove SMBv1 in Windows 10, Windows 8.1, Windows Server 2019, Windows Server 2016, and Windows 2012 R2.

PowerShell methods

Here are the steps to detect, disable and enable SMBv1 client and server by using PowerShell commands.

 Note

The computer will restart after you run the PowerShell commands to disable or enable SMBv1.

  • Detect:
    PowerShell

    Get-WindowsOptionalFeature -Online -FeatureName SMB1Protocol
  • Disable:
    PowerShell

    Disable-WindowsOptionalFeature -Online -FeatureName SMB1Protocol
  • Enable:
    PowerShell

    Enable-WindowsOptionalFeature -Online -FeatureName SMB1Protocol

Windows Server 2012 Windows Server 2012 R2, Windows Server 2016, Windows Server 2019: Server Manager method

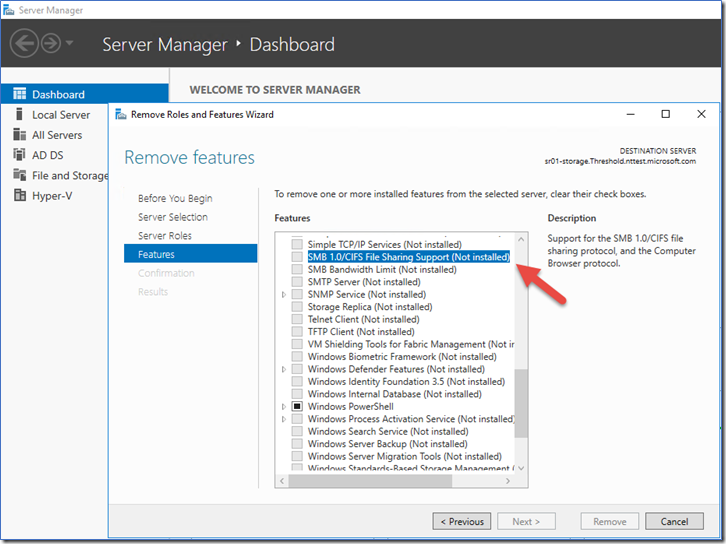

Server Manager - Dashboard method

To remove SMBv1 from Windows Server:

  1. On the Server Manager Dashboard of the server where you want to remove SMBv1, under Configure this local server, select Add roles and features.
  2. On the Before you begin page, select Start the Remove Roles and Features Wizard, and then on the following page, select Next.
  3. On the Select destination server page under Server Pool, ensure that the server you want to remove the feature from is selected, and then select Next.
  4. On the Remove server roles page, select Next.
  5. On the Remove features page, clear the check box for SMB 1.0/CIFS File Sharing Support and select Next.
  6. On the Confirm removal selections page, confirm that the feature is listed, and then select Remove.

Windows 8.1 and Windows 10: Add or Remove Programs method

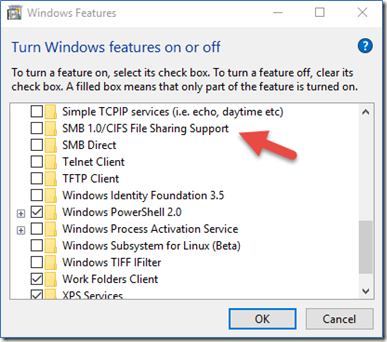

Add-Remove Programs client method

To disable SMBv1 on Windows 8.1 and Windows 10:

  1. In Control Panel, select Programs and Features.
  2. Under Control Panel Home, select Turn Windows features on or off to open the Windows Features box.
  3. In the Windows Features box, scroll down the list, clear the check box for SMB 1.0/CIFS File Sharing Support and select OK.
  4. After Windows applies the change, on the confirmation page, select Restart now.

How to detect status, enable, and disable SMB protocols on the SMB Server

For Windows 8.1, Windows Server 2012, Windows Server 2012 R2, Windows 10, and Windows Server 2019

Windows 8 and Windows Server 2012 introduced the new Set-SMBServerConfiguration Windows PowerShell cmdlet. The cmdlet enables you to enable or disable the SMBv1, SMBv2, and SMBv3 protocols on the server component.

 Note

When you enable or disable SMBv2 in Windows 8 or Windows Server 2012, SMBv3 is also enabled or disabled. This behavior occurs because these protocols share the same stack.

You don’t have to restart the computer after you run the Set-SMBServerConfiguration cmdlet.

SMBv1 on SMB Server

  • Detect:
    PowerShell

    Get-SmbServerConfiguration | Select EnableSMB1Protocol
  • Disable:
    PowerShell

    Set-SmbServerConfiguration -EnableSMB1Protocol $false
  • Enable:
    PowerShell

    Set-SmbServerConfiguration -EnableSMB1Protocol $true

For more information, see Server storage at Microsoft.

SMB v2/v3 on SMB Server

  • Detect:
    PowerShell

    Get-SmbServerConfiguration | Select EnableSMB2Protocol
  • Disable:
    PowerShell

    Set-SmbServerConfiguration -EnableSMB2Protocol $false
  • Enable:
    PowerShell

    Set-SmbServerConfiguration -EnableSMB2Protocol $true

For Windows 7, Windows Server 2008 R2, Windows Vista, and Windows Server 2008

To enable or disable SMB protocols on an SMB Server that is running Windows 7, Windows Server 2008 R2, Windows Vista, or Windows Server 2008, use Windows PowerShell or Registry Editor.

PowerShell methods

 Note

This method requires PowerShell 2.0 or later version of PowerShell.

SMBv1 on SMB Server

Detect:

PowerShell

Get-Item HKLM:\SYSTEM\CurrentControlSet\Services\LanmanServer\Parameters | ForEach-Object {Get-ItemProperty $_.pspath}

Default configuration = Enabled (No registry named value is created), so no SMB1 value will be returned

Disable:

PowerShell

Set-ItemProperty -Path "HKLM:\SYSTEM\CurrentControlSet\Services\LanmanServer\Parameters" SMB1 -Type DWORD -Value 0 -Force

Enable:

PowerShell

Set-ItemProperty -Path "HKLM:\SYSTEM\CurrentControlSet\Services\LanmanServer\Parameters" SMB1 -Type DWORD -Value 1 -Force

Note You must restart the computer after you make these changes. For more information, see Server storage at Microsoft.

SMBv2/v3 on SMB Server

Detect:

PowerShell

Get-ItemProperty HKLM:\SYSTEM\CurrentControlSet\Services\LanmanServer\Parameters | ForEach-Object {Get-ItemProperty $_.pspath}

Disable:

PowerShell

Set-ItemProperty -Path "HKLM:\SYSTEM\CurrentControlSet\Services\LanmanServer\Parameters" SMB2 -Type DWORD -Value 0 -Force

Enable:

PowerShell

Set-ItemProperty -Path "HKLM:\SYSTEM\CurrentControlSet\Services\LanmanServer\Parameters" SMB2 -Type DWORD -Value 1 -Force

 Note

You must restart the computer after you make these changes.

Registry Editor

 Important

Follow the steps in this section carefully. Serious problems might occur if you modify the registry incorrectly. Before you modify it, back up the registry for restoration in case problems occur.

To enable or disable SMBv1 on the SMB server, configure the following registry key:

HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Services\LanmanServer\Parameters

Registry entry: SMB1
REG_DWORD: 0 = Disabled
REG_DWORD: 1 = Enabled
Default: 1 = Enabled (No registry key is created)

To enable or disable SMBv2 on the SMB server, configure the following registry key:

HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Services\LanmanServer\Parameters

Registry entry: SMB2
REG_DWORD: 0 = Disabled
REG_DWORD: 1 = Enabled
Default: 1 = Enabled (No registry key is created)

 Note

 You must restart the computer after you make these changes.

How to detect status, enable, and disable SMB protocols on the SMB Client

Here is how to detect status, enable, and disable SMB protocols on the SMB Client that is running Windows 10, Windows Server 2019, Windows 8.1, Windows Server 2016, Windows Server 2012 R2, and Windows Server 2012.

 Note

When you enable or disable SMBv2 in Windows 8 or in Windows Server 2012, SMBv3 is also enabled or disabled. This behavior occurs because these protocols share the same stack.

SMBv1 on SMB Client

  • Detect
    Console

    sc.exe qc lanmanworkstation
  • Disable:
    Console

    sc.exe config lanmanworkstation depend= bowser/mrxsmb20/nsi
sc.exe config mrxsmb10 start= disabled
  • Enable:
    Console

    sc.exe config lanmanworkstation depend= bowser/mrxsmb10/mrxsmb20/nsi
sc.exe config mrxsmb10 start= auto

For more information, see Server storage at Microsoft

SMBv2/v3 on SMB Client

  • Detect:
    Console

    sc.exe qc lanmanworkstation
  • Disable:
    Console

    sc.exe config lanmanworkstation depend= bowser/mrxsmb10/nsi
sc.exe config mrxsmb20 start= disabled
  • Enable:
    Console

    sc.exe config lanmanworkstation depend= bowser/mrxsmb10/mrxsmb20/nsi
sc.exe config mrxsmb20 start= auto

 Note

  • You must run these commands at an elevated command prompt.
  • You must restart the computer after you make these changes.

Disable SMBv1 by using Group Policy

This section introduces how to use Group Policy to disable SMBv1. You can use this method on different versions of Windows.

Disable SMBv1 server

This procedure configures the following new item in the registry:

HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Services\LanmanServer\Parameters

  • Registry entry: SMB1
  • REG_DWORD: 0 = Disabled

To use Group Policy to configure this, follow these steps:

  1. Open the Group Policy Management Console. Right-click the Group Policy object (GPO) that should contain the new preference item, and then click Edit.
  2. In the console tree under Computer Configuration, expand the Preferences folder, and then expand the Windows Settings folder.
  3. Right-click the Registry node, point to New, and select Registry Item.

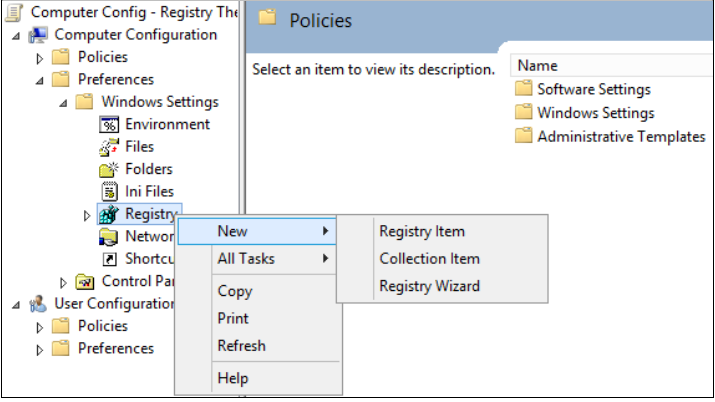

    Registry - New - Registry Item

In the New Registry Properties dialog box, select the following:

  • Action: Update
  • Hive: HKEY_LOCAL_MACHINE
  • Key Path: SYSTEM\CurrentControlSet\Services\LanmanServer\Parameters
  • Value name: SMB1
  • Value type: REG_DWORD
  • Value data: 0

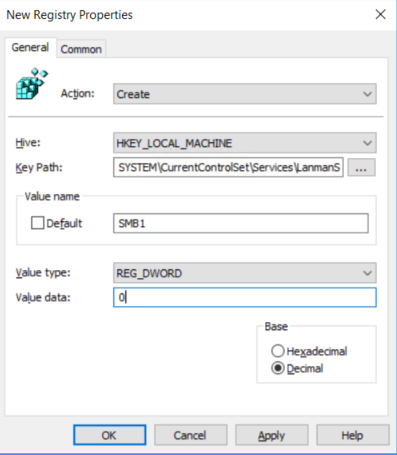

New Registry Properties - General

This procedure disables the SMBv1 Server components. This Group Policy must be applied to all necessary workstations, servers, and domain controllers in the domain.

 Note

 WMI filters can also be set to exclude unsupported operating systems or selected exclusions, such as Windows XP.

 Important

Be careful when you make these changes on domain controllers on which legacy Windows XP or older Linux and third-party systems (that don’t support SMBv2 or SMBv3) require access to SYSVOL or other file shares where SMB v1 is being disabled.

Disable SMBv1 client

To disable the SMBv1 client, the services registry key needs to be updated to disable the start of MRxSMB10 and then the dependency on MRxSMB10 needs to be removed from the entry for LanmanWorkstation so that it can start normally without requiring MRxSMB10 to first start.

This guidance updates and replaces the default values in the following two items in the registry:

HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\services\mrxsmb10

Registry entry: Start REG_DWORD: 4= Disabled

HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Services\LanmanWorkstation

Registry entry: DependOnService REG_MULTI_SZ: “Bowser”,”MRxSmb20″,”NSI”

 Note

 The default included MRxSMB10 which is now removed as dependency.

To configure this by using Group Policy, follow these steps:

  1. Open the Group Policy Management Console. Right-click the GPO that should contain the new preference item, and then click Edit.
  2. In the console tree under Computer Configuration, expand the Preferences folder, and then expand the Windows Settings folder.
  3. Right-click the Registry node, point to New, and select Registry Item.
  4. In the New Registry Properties dialog box, select the following:
    • Action: Update
    • Hive: HKEY_LOCAL_MACHINE
    • Key Path: SYSTEM\CurrentControlSet\services\mrxsmb10
    • Value name: Start
    • Value type: REG_DWORD
    • Value data: 4

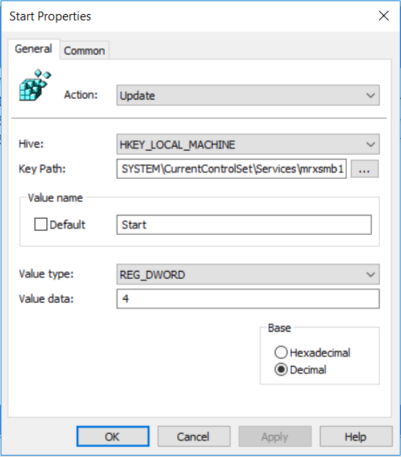

    Start Properties - General

  5. Then remove the dependency on the MRxSMB10 that was disabled.

    In the New Registry Properties dialog box, select the following:

    • Action: Replace
    • Hive: HKEY_LOCAL_MACHINE
    • Key Path: SYSTEM\CurrentControlSet\Services\LanmanWorkstation
    • Value name: DependOnService
    • Value type: REG_MULTI_SZ
    • Value data:
      • Bowser
      • MRxSmb20
      • NSI

     Note

    These three strings will not have bullets (see the following screen shot).

    DependOnService Properties

    The default value includes MRxSMB10 in many versions of Windows, so by replacing them with this multi-value string, it is in effect removing MRxSMB10 as a dependency for LanmanWorkstation and going from four default values down to just these three values above.

     Note

    When you use Group Policy Management Console, you don’t have to use quotation marks or commas. Just type each entry on individual lines.

  6. Restart the targeted systems to finish disabling SMB v1.

Auditing SMBv1 usage

To determine which clients are attempting to connect to an SMB server with SMBv1, you can enable auditing on Windows Server 2016, Windows 10, and Windows Server 2019. You can also audit on Windows 7 and Windows Server 2008 R2 if the May 2018 monthly update is installed, and on Windows 8.1 and Windows Server 2012 R2 if the July 2017 monthly update is installed.

  • Enable:
    PowerShell

    Set-SmbServerConfiguration -AuditSmb1Access $true
  • Disable:
    PowerShell

    Set-SmbServerConfiguration -AuditSmb1Access $false
  • Detect:
    PowerShell

    Get-SmbServerConfiguration | Select AuditSmb1Access

When SMBv1 auditing is enabled, event 3000 appears in the “Microsoft-Windows-SMBServer\Audit” event log, identifying each client that attempts to connect with SMBv1.

Summary

If all the settings are in the same GPO, Group Policy Management displays the following settings.

Group Policy Management Editor - Registry

Testing and validation

After completing the configuration steps in this article, allow the policy to replicate and update. As necessary for testing, run gpupdate /force at a command prompt, and then review the target computers to make sure that the registry settings are applied correctly. Make sure SMBv2 and SMBv3 are functioning for all other systems in the environment.

 Note

Don’t forget to restart the target systems.

Source: How to detect, enable and disable SMBv1, SMBv2, and SMBv3 in Windows | Microsoft Docs

Some stuff about things
